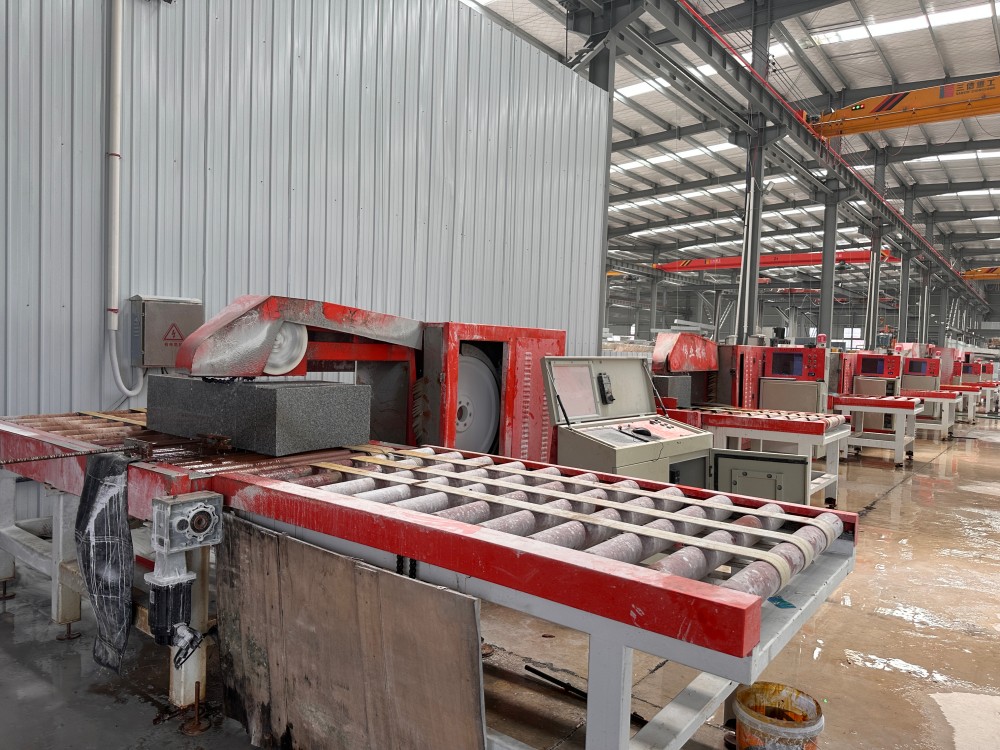

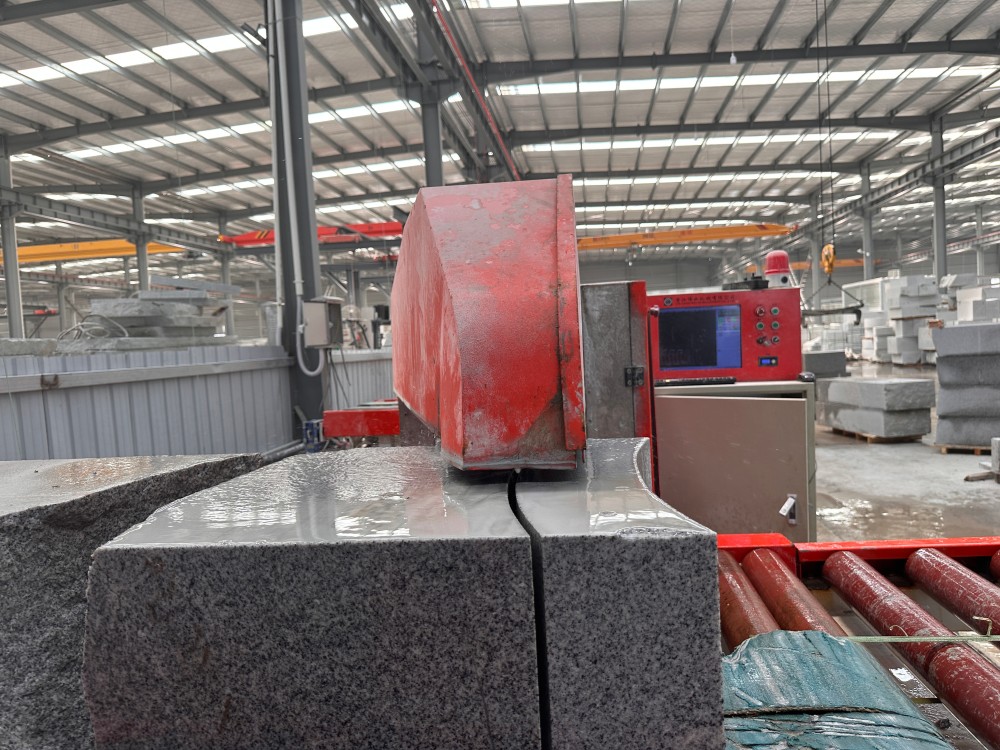

A Horizontal Wire Saw for Profiling and Shaping is an advanced Computer Numerical Control (CNC) cutting machine designed for high-precision, efficient machining of large, hard, and complex-shaped materials such as natural stone, concrete, and composite materials. Its core technology utilizes a continuously moving "diamond wire" as the cutting tool. This wire, controlled by a sophisticated CNC system, can follow precise paths to create arbitrary curves and complex three-dimensional shapes in a workpiece.
The term "Horizontal" refers to the machine's primary structural orientation, where the workpiece is typically mounted on a horizontal bed, offering superior stability and ease of clamping. "Profiling and Shaping" highlights the machine's core capability—processing non-planar, complex, and irregular components.
Profiling wire saw consists of the following key systems:
Main Frame & Bed: A heavy-duty, rigid steel structure that ensures stability and accuracy during high-speed, heavy-load cutting operations, preventing deformation and vibration.
Wire Saw System:
Drive Wheel (Main Wheel): The powered wheel that propels the diamond wire at high speeds.
Idler Wheel (Tension Wheel): Used to guide and maintain constant tension on the diamond wire.
Diamond Wire: The core "cutting tool." It consists of a high-tensile steel cable, spacer springs, and diamond-impregnated beads sintered onto it. The bead specifications

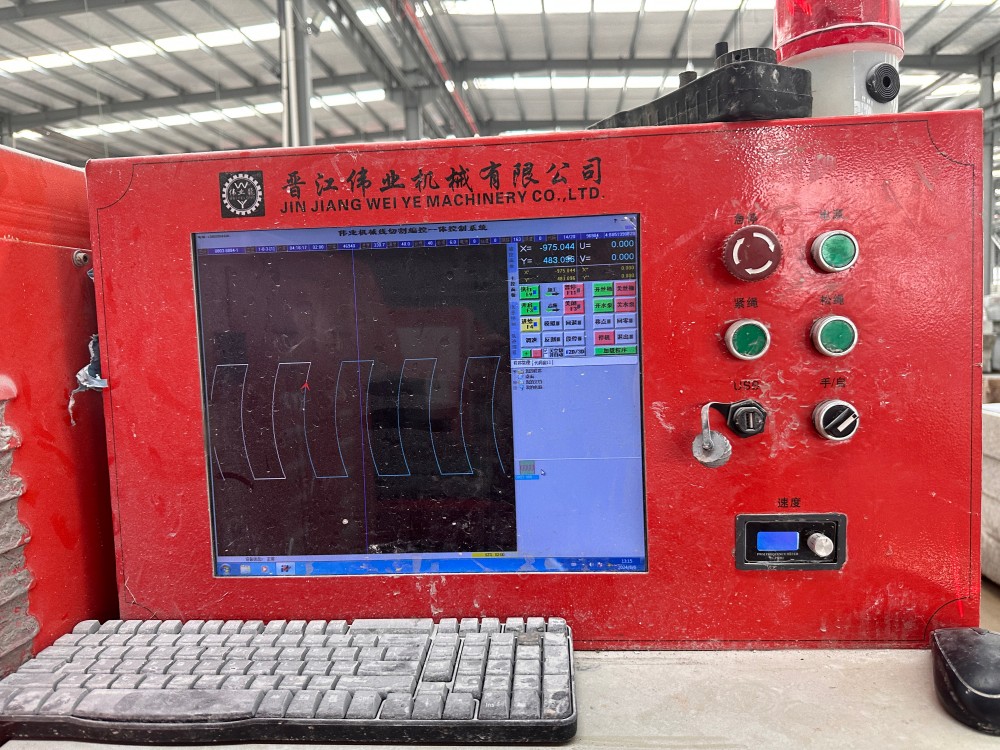

CNC Control System & Motion Axes: The brain of the machine. It typically features multi-axis interpolation, allowing for precise control of the wire's path in three-dimensional space to achieve complex 3D carving and cutting.
Work Table & Clamping System: Designed to secure large workpieces. The table often features T-slots or vacuum suction systems, combined with specialized fixtures, to ensure the workpiece remains firmly in place during cutting.
Cooling System: An essential component. It continuously pumps coolant (typically water) to the cutting point to.
